Product information

Description

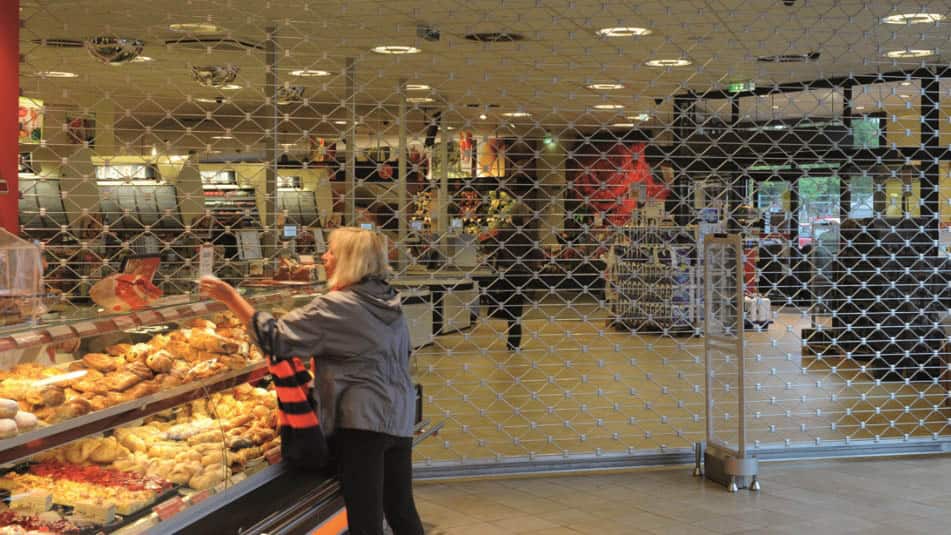

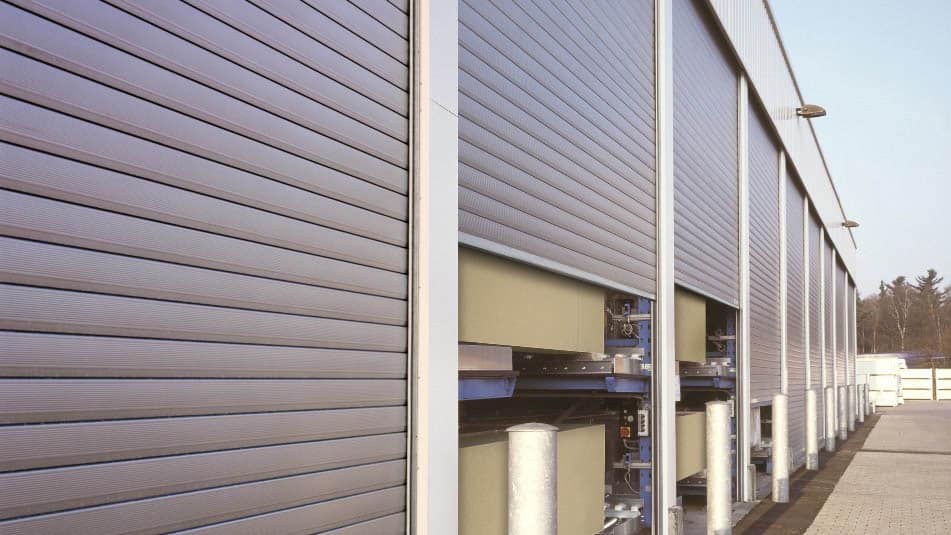

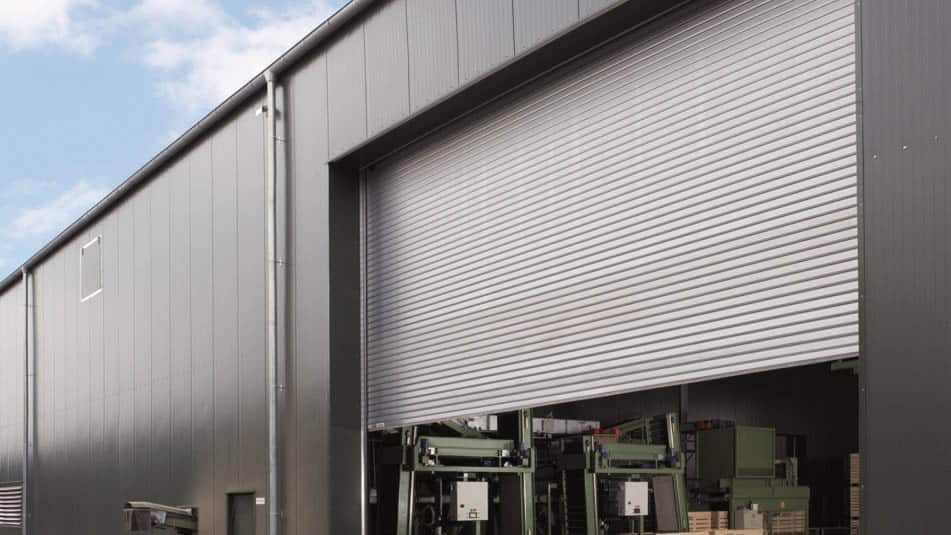

Our innovative roller shutters and grilles are the result of collaboration with the leading global industrial door manufacturer. Roller shutters are ideal for high and wide door openings due to their space-saving roller technology and hardwearing curtain. They meet the highest product and safety requirements (EN 13241-1) with respect to mechanical characteristics, heat and noise insulation, wind resistance, and watertightness.The simple, robust design makes our roller shutters perfect for a wide variety of industrial applications. Especially they are popular for parking garages. KONE grilles are perfect solution when you need a good ventilation and theft protection, for example for securing stores with large shop fronts inside shopping malls, where low headroom can be a challenge, as well as protecting underground parking garages.

Features and options

  • Roller Shutter Easy has a simple and compact design and can be quickly installed.
  • Roller Shutter ThermoTeck is robust and provides excellent heat insulation.
  • Roller Shutter Fire Proof has been tested in accordance with STN EN 13501-2:2005 and certified for EW30, EW45, EW60, E30, and E60 fire-resistance classes.
  • Grilles feature straight honeycomb, plain aluminium profiles with galvanised bottom bracket and consoles, and primer-coated winding shaft.

Specifications

  • Roller shutters: width from 1000 mm up to 11500 mm, height from 1000 mm up to 12000 mm
  • Grilles: width from 1000 mm up to 18000 mm*, height from 1000 mm up to 8000 mm
    *upon request

Segment

External and internal applications, parking garages in medical, office, retail centers, infrastructure buildings, hotels, residential, education and leisure facilities, shop entrances in malls
